As a leading CNC machining factory, Realhao Precision is specialized in metal and plastic parts making. Vacuum forming molds for thermoformed blister packaging and clamshell packaging is one of main business. Three engineers in Realhao Precision are responsible for Vacumm forming molds designing and verifying. Each month, Realhao Precision makes over 600 pieces of vacuum forming molds for blister packaging and clamshell packaging.

Vacuum Form Molds Capabilities

CNC Machines 7 sets
EDM Machines 7 Sets
Wire Cutting Machines 3 Sets
Material Used Cast aluminum, CNC machine aluminum, plastic,
Processes Milling, Grinding, EDM, deep hole gun drill, polishing
Part Size (Maximum) 1200*1000*600mm(L*W*H)
Tolerances (+/-) 0.01mm
Additional Services Offered Vacuum forming samples parts up to 1000mm
Design,
Engineering
CAD/CAM
Reverse engineering
Quality Control CMM, projector inspector,
Files Formats Accepted MasterCAM
IGES, STEP, X_T,X_T, DXF, DWG, PDF, SLDASM,
Lead Time 3-25 days

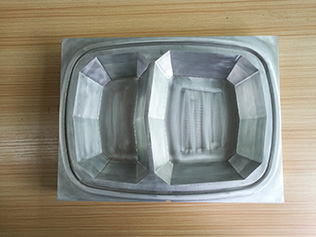

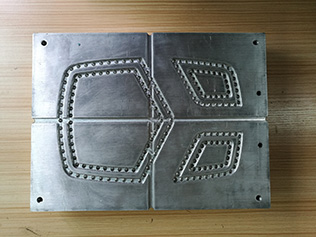

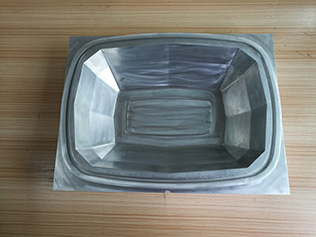

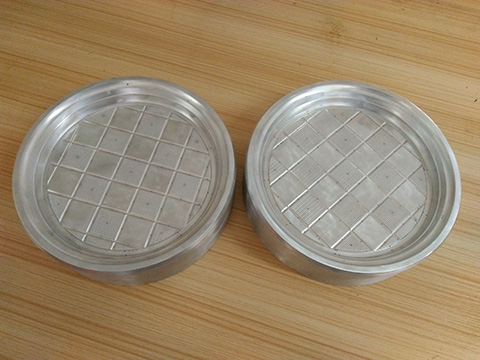

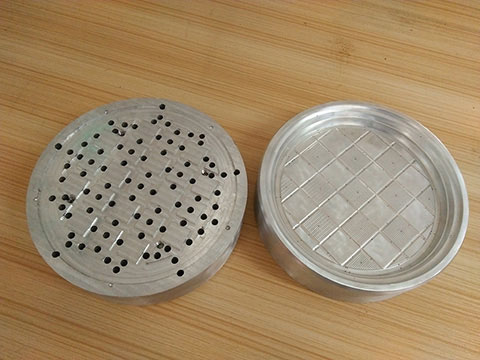

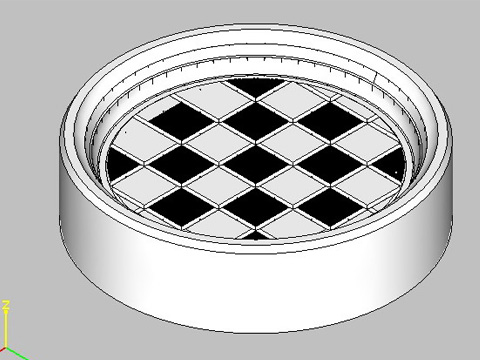

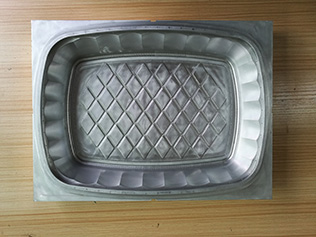

CNC Machined Vacuum Forming Molds for Blister Packaging and Clamshell Packaging 1

Name of Products: Vacuum forming molds Components.
Quantity: 2+1 pcs.
Material: Aluminum Alloy, 7075
Process: CNC Machining.
Venting holes dimension: 0.5mm in diameter.
Lead time: Finished in 3 Days.
Delivery way: by express, 3 days arrived at customer factory.

  • Vaccum-forming-mold
  • vacuum-forming
  • vacuum-forming-molds
  • vacuum-molding
  • vacuum-forming-molds
  • thermoforming

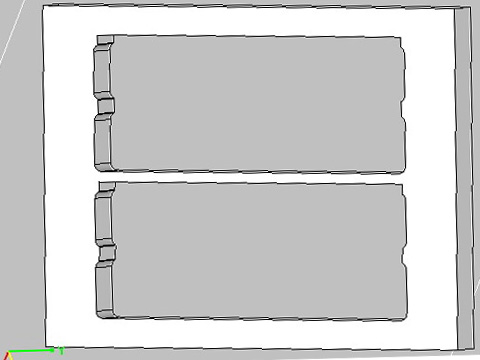

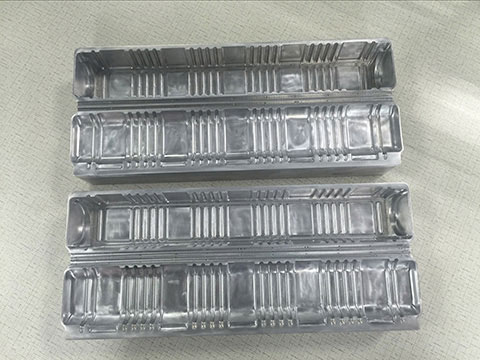

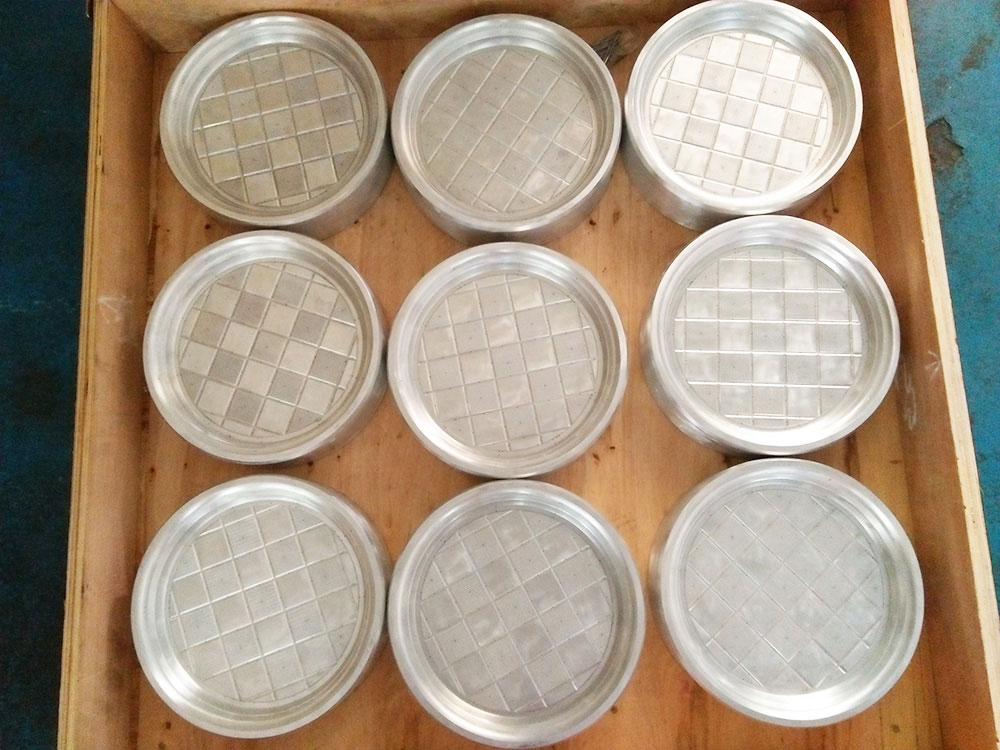

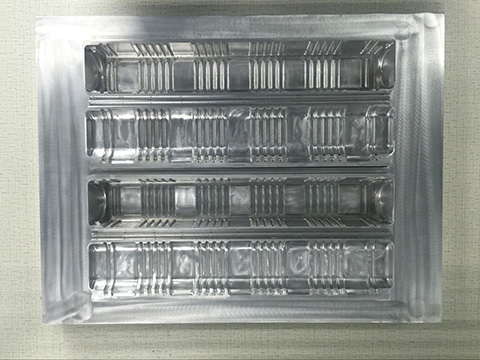

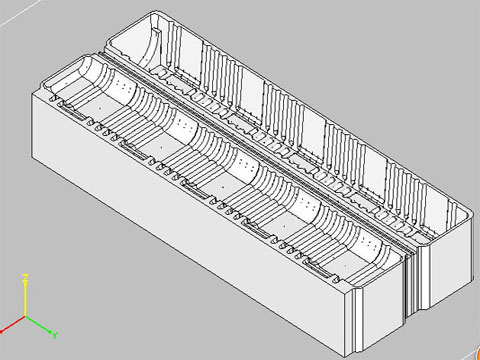

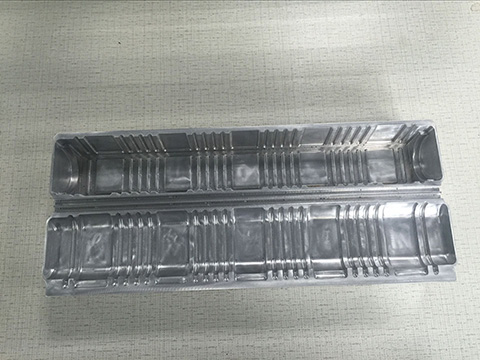

CNC Machined Vacuum Forming Molds for Blister Packaging and Clamshell Packaging 2

Name of Products: Vacuum forming molds Components.
Quantity: 9 pcs.
Material: Aluminum Alloy, 7075
Process: CNC Machining.
Venting holes dimension: 0.5mm in diameter.
Lead time: Finished in 5 Days.
Delivery way: by express, 3 days arrived at customer factory.

  • CNC-Machining
  • vacuum-forming-process
  • thermoforming-machine
  • vacuum-forming-products
  • thermoformed-blister-packaging

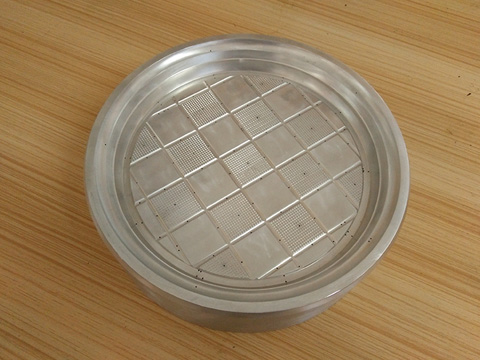

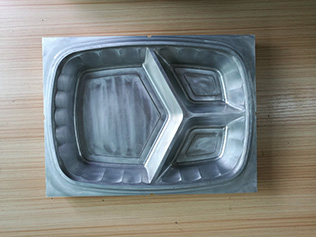

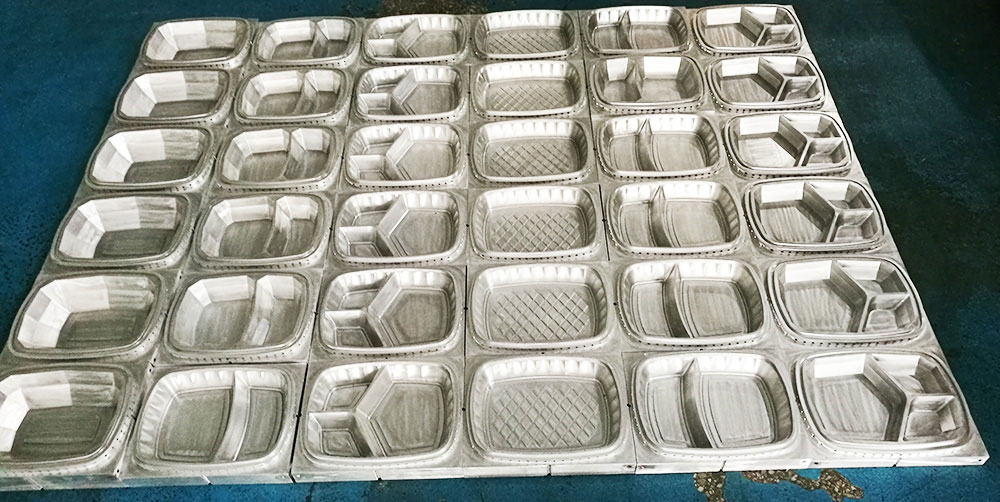

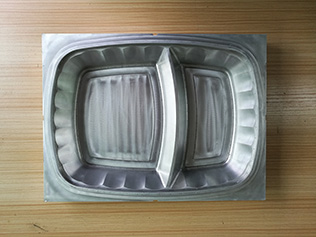

  • CNC Machined Vacuum Forming Molds for Blister Packaging and Clamshell Packaging 3

    Name of Products: Vacuum forming molds Components.
    Quantity: 6*6=36 pcs.
    Material: Aluminum Alloy, 7075
    Process: CNC Machining.
    Venting holes dimension: 0.5mm in diameter.
    Lead time: Finished in 20 Days.
    Delivery way: by express, 3 days arrived at customer factory.

    • thermoformed clamsheel packing

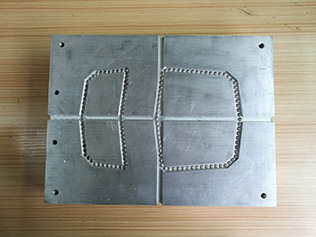

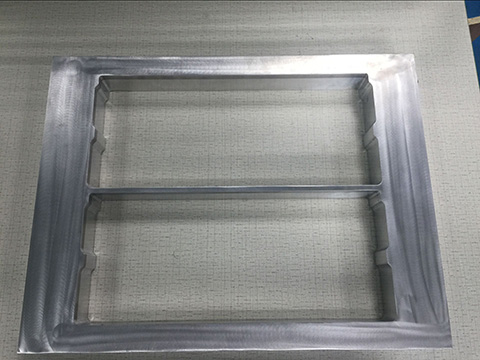

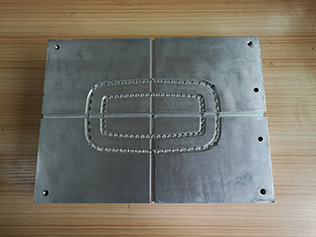

      Aluminum Machined Parts
      Precision Machining
      Aluminum-Machined-Parts
      Aluminum-Parts
      Aluminum-Vacuum-Molds
      Mold-Parts
      Mold-Custom-Parts
      Mold-Custom-Inserts

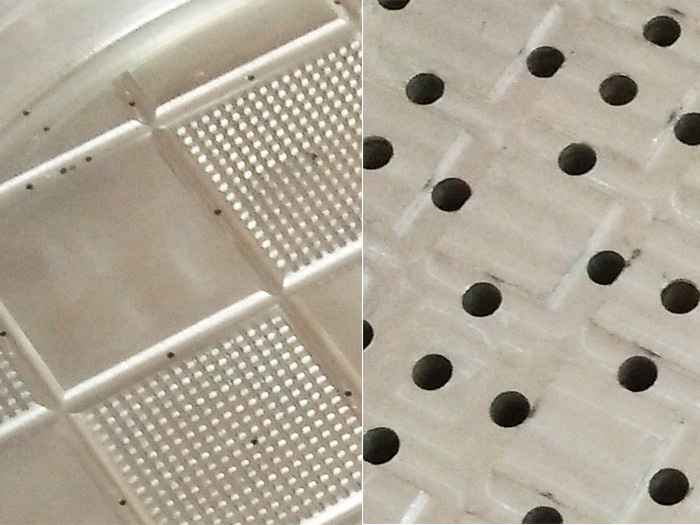

    Venting holes and water lines for vacuum forming molds

      Mold-Venting-Hole
      Realhao Precision can help you to design and make venting hole with minimum diameter of 0.5 mm. There will be no any sink mark on the part. .
      Water line design and making.
      Mold-Walter-Line
